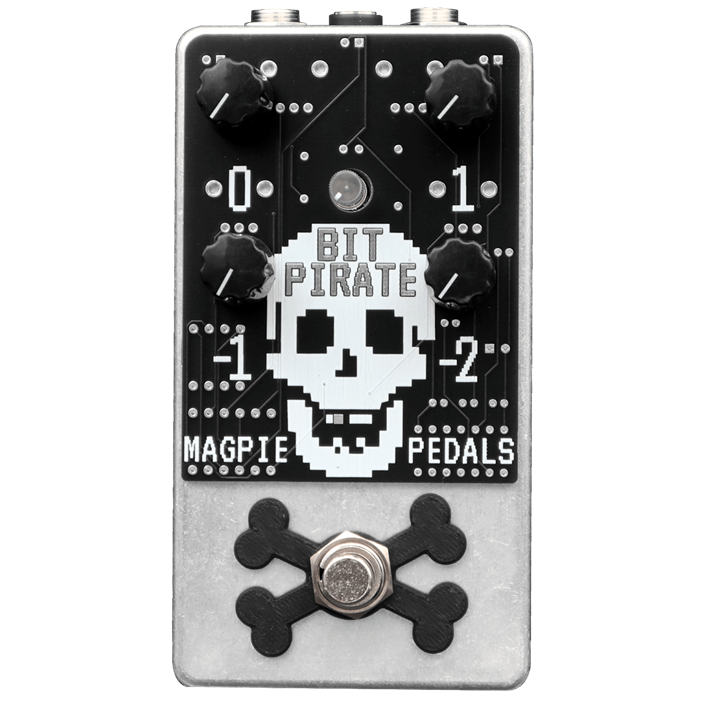

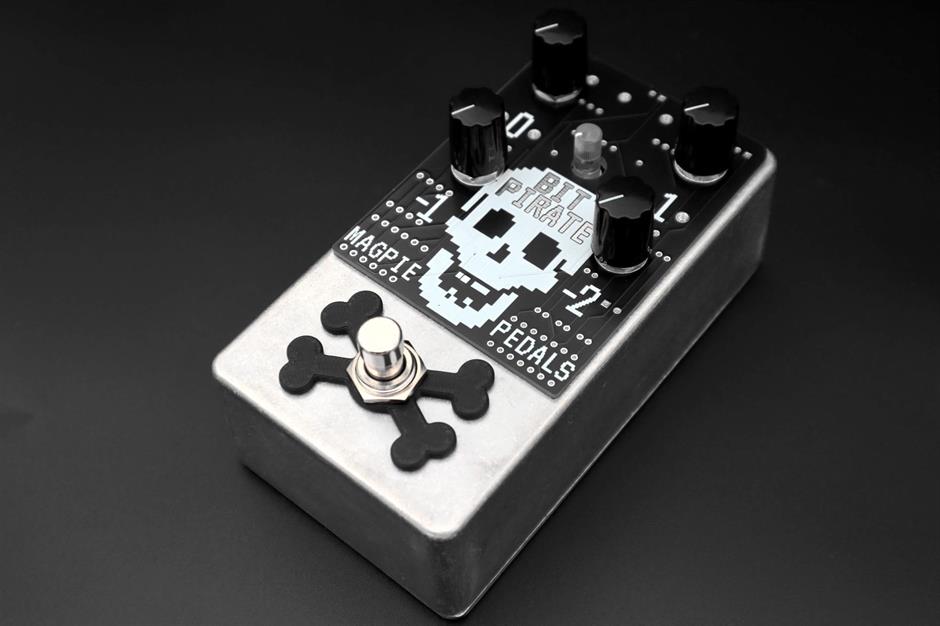

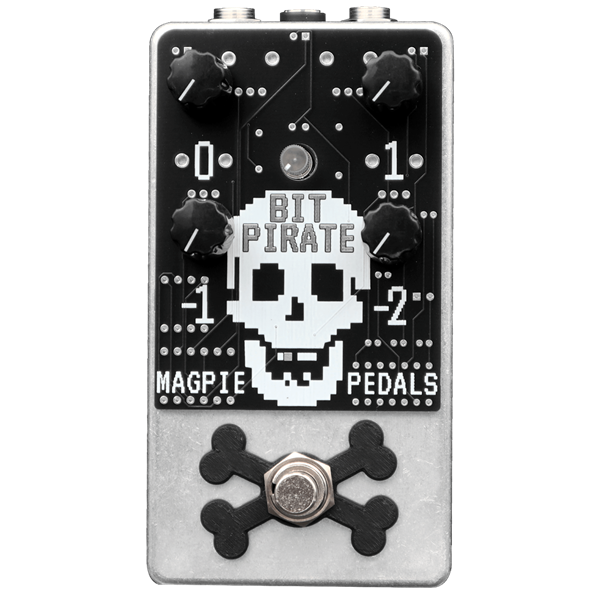

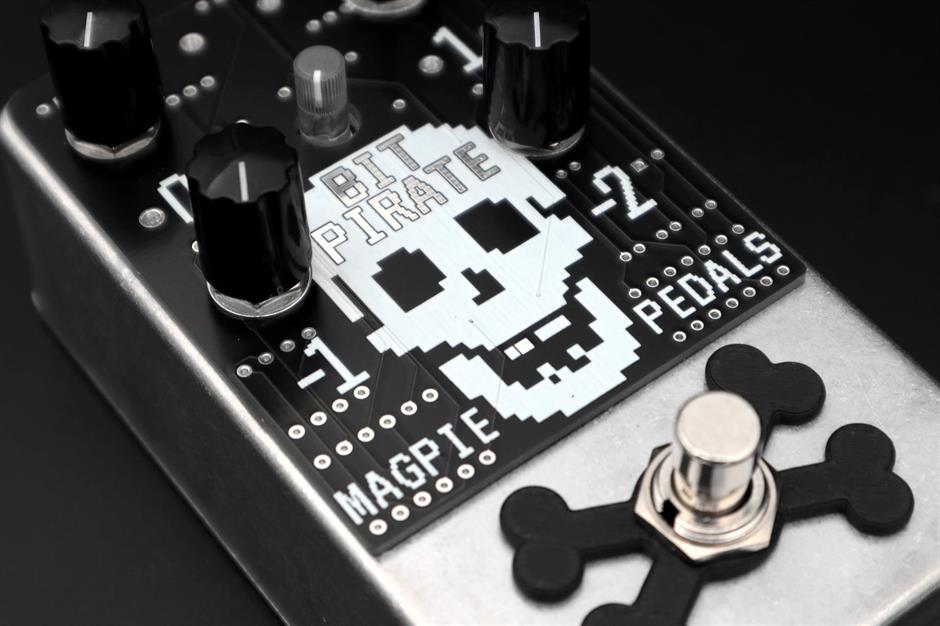

Bit Pirate V.2+

(now with added dry mix!)

Bit Pirate 2+ takes your input signal and splits it into four different voices running in parallel through CMOS technology.
It does this by running your signal straight into a LM386 amplifier, making the signal hot enough to clock a 4040  Binary Counter and also "trick" a 4070 OR Gate.

This gives us a main voice, a one octave up voice, a square wave octave down voice and a square wave two octaves down voice.

So each knob on the Bit Pirate is simply a volume knob for it's corresponding voice. So you can blend these signals together into a monophonic synthyfied megavoice.

-

Bit Pirate also uses a unique bypass switching system that I call "Triple Bypass", where you have three different "modes" for turning the pedal on and off:

Short Press: Works like any regular pedal. Press to turn it on and then press to turn it off.

Momentary/Hold: If you press and hold for about 1-2 seconds the pedal will enter a hold mode. Here it will simply stay in the state it entered when pressing down the button, for however long you decide to hold down the button, and then return when you release the button.
So if you press down when the pedal is turned OFF it will stay ON for as long as you hold the button pressed down, and vice versa.

Tap Tempo Bypass: If you quickly double tap the bypass button (either when on or off) the pedal will enter the "Tap Tempo Bypass" mode. Here the pedal automatically turns itself on/off in whichever tempo you tap. So to change tempo you simply tap a new tempo.
It continuously counts time since your last tap. So if you have been in a tempo for some time and just tap a single tap, it will count the time between this tap and the last tap in previous tempo as your new tempo. With a max lenght of around 1min.

To exit "tap tempo bypass" you simply press and hold the button for about 1-2 seconds. Note that when exiting this mode the pedal will be ON (regardless if you exit in a OFF or ON state).

-
